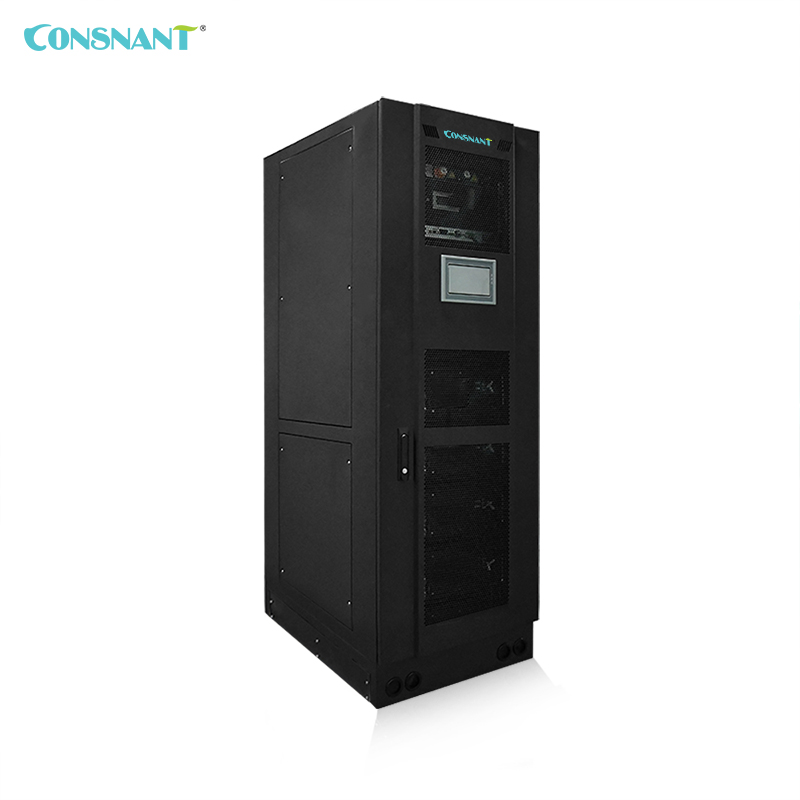

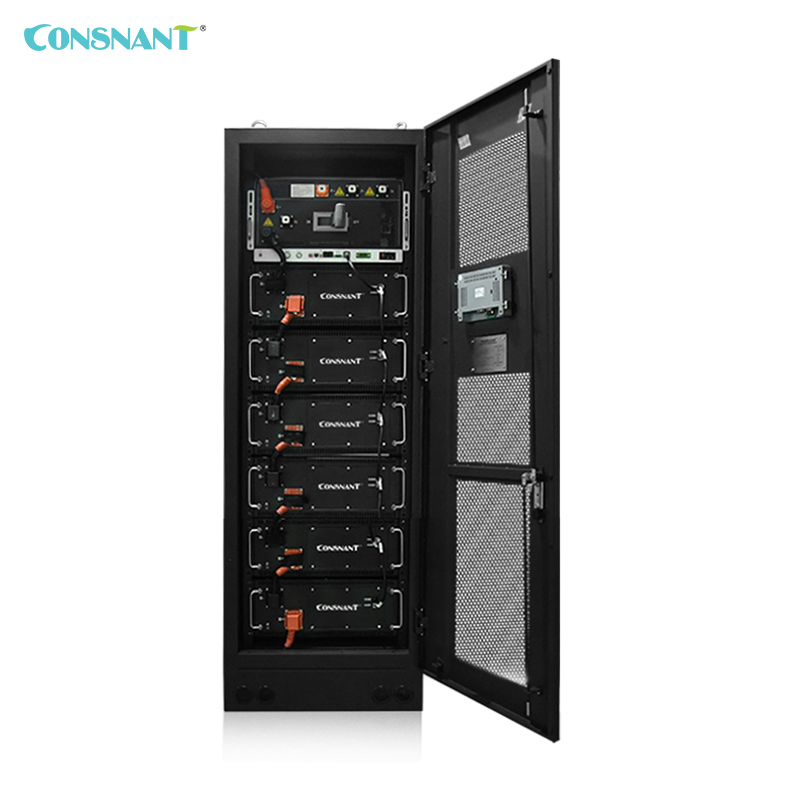

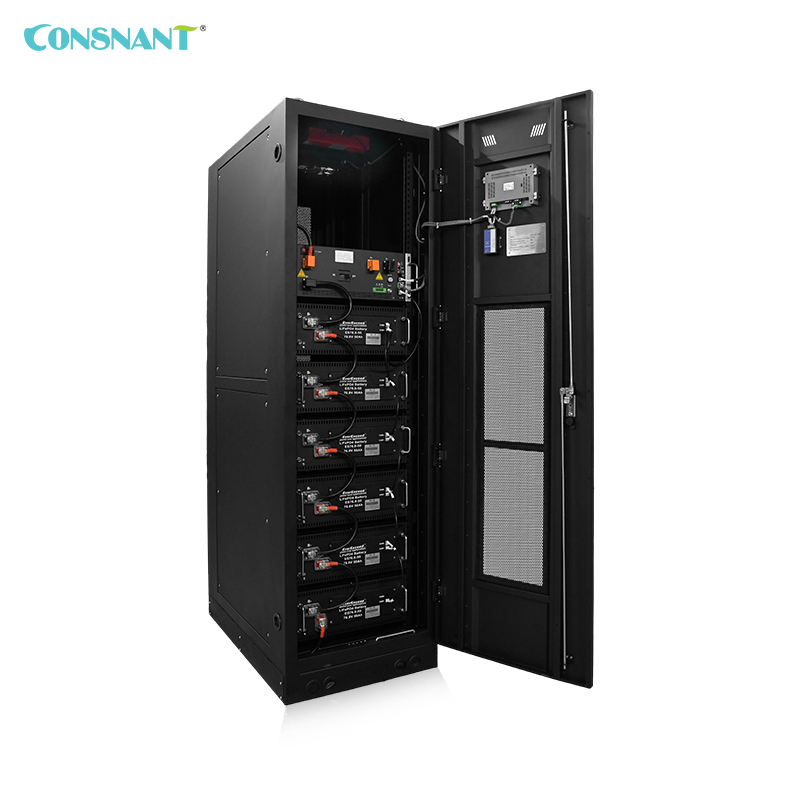

High Voltage Lithium Battery System 384V 50A

Description

As we all know,the battery quality is one of the most critical factors in UPS performance,is a global leading provider of energy storage system with 20+years battery manufacturing experience.Furthermore,is also theglobal manufacturer of customized industrial UPS with rich UPS system integration experience.UPS lithium battery can support 1C/2C/3C/4C/5C/6C high-curentdischarge program,meeting the needs of different backup times. Besides,our lithium batteries are highly compatible with many compatible with many well-known brands of UPS,Such as Vertiv,Eaton,Schneider,Riello,APC,Bori,Socomec,East and so on.

Advantages:

• Safer and high quality

·Adopting grade Aprismatic lithium iron phosphate cells which haveultra high rated 8C discharge ability and with authoritativecertification.

·Adopting four-stage safety technology,Ensuring the ultimatesafety.

√Lithium iron phosphate technology.

√Intelligent battery management system(BMS),cell levelmanagement.

√Built in independent physical aerosol fire extinguishers,safe andgreen.

√Built in cabinet fire extinguishers,strong security.

• Smarter and high reliability

·BMS protection: overtemperature,low temperature,over-voltage,low-voltage,overcurrent,short-circuit protection.

·Three-level BMS system ensures reliability.

·Monitoring the battery status at any time,make a response inadvance to avoid UPS,system failure.

·Unique andefficient air duct design with high speed fans for eachmodule and cabinet,ensure the batteries have excellent heatdissipation performance.

• Simpler and cost saving

·Long cycle lifespan,cycle time can be up to 5000 times.

·Saving 70% footprint than lead-acid battery.

·Smart BMS system,saving 80%routine O&M costs.

·15years service life,3~5times more than lead-acid battery.

Benefits:

Manufacturing Excellence:

• 20 years of system integration experience.
• 20 years of lead-acid battery manufacturing experience.
• 10 years of experience in lithium battery manufacturing.

Saves Money:

Saves frequent replacement cost.

• Save transportation and installation costs.
• Up to 40%total cost of ownership savings.

Reduce Risk:

• 24hrs x 7days BMS monitoring.
• Fire extinguisher module.
• Battery module and cabinet cooling system.

Save Space:

• Up to 70%smaller.
• Up to 60%lighter.

Lithium Cell

High-voltage series batteries are square batteries of first-line brands,with light weight,stable performance andhigh energy density.

Grade A cells: High energy density design,quality assurance.

Discharge rate: 1C~8C.

Strict grouping: Ensure consistency.

Lithium Module

Whole integrated storage system with bothlithium modules and BMS,quite convenient inboth mainte nance and installation,ex tendableto large scale,19-inch standardized module.

• Customized system with flexibility.
• Wide range of voltage and capacity.
• Modular design for easy installation
• Integrated with BMU.

Intelligent Management System

Monitoring:

• Cell voltage and temperature.
• Charge and discharge current.
• Total battery cluster voltage.
• SOC & SOH.
• Communication status.
• Cell & battery module balancing

Protection:

• Over or under temperature & voltage.
• Short circuitor communication failure.
• Over current of charge or discharge.
